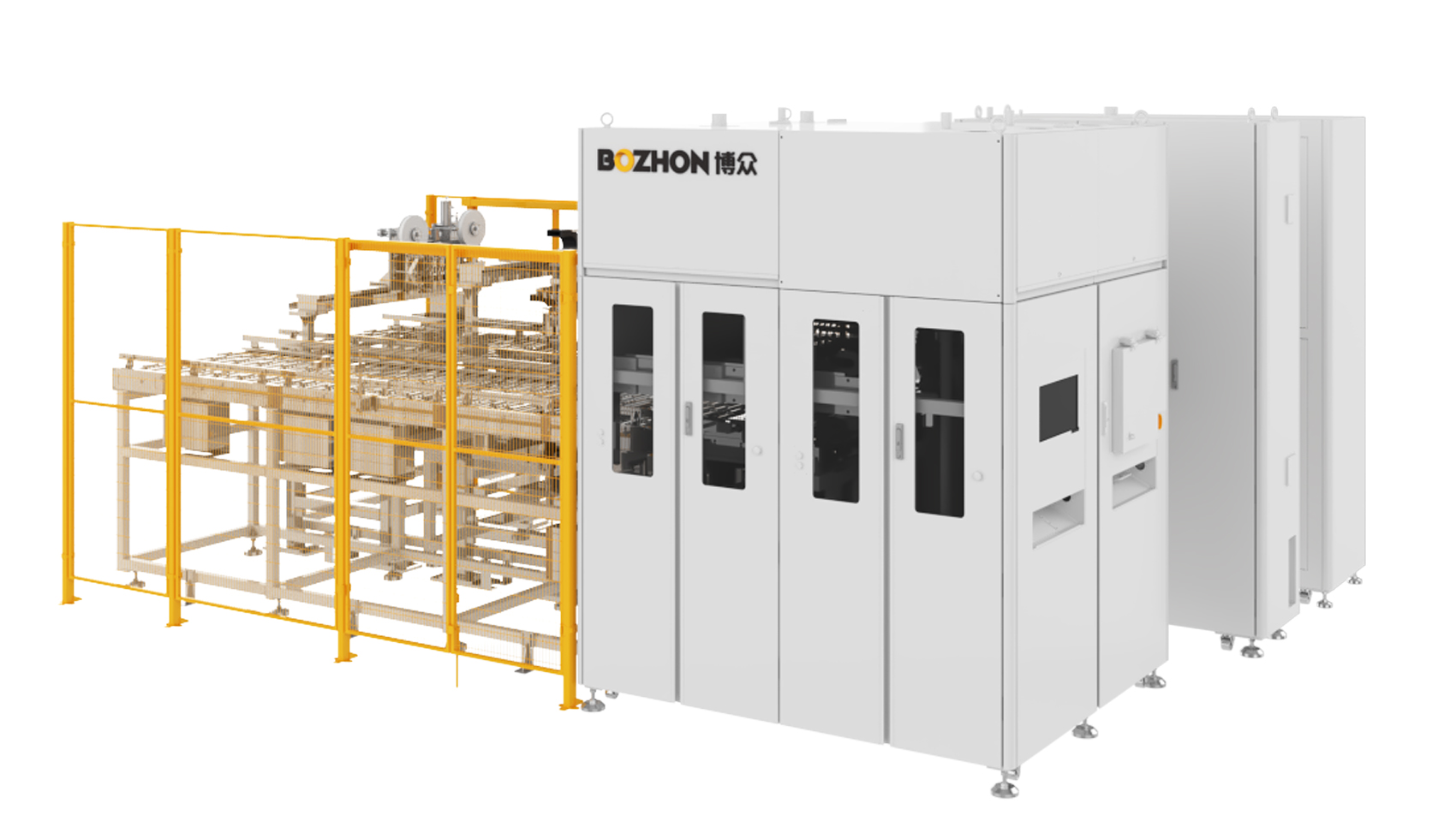

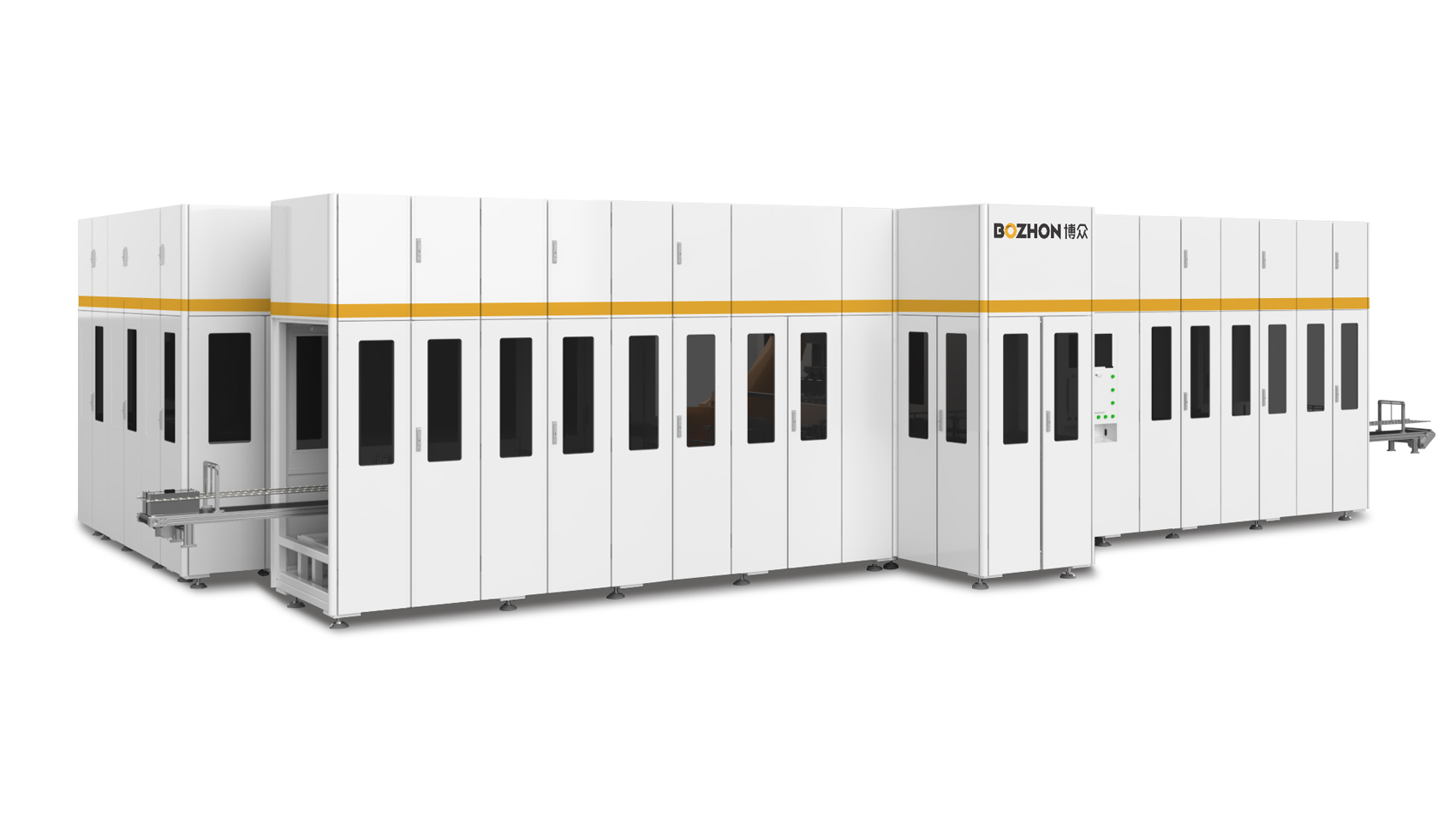

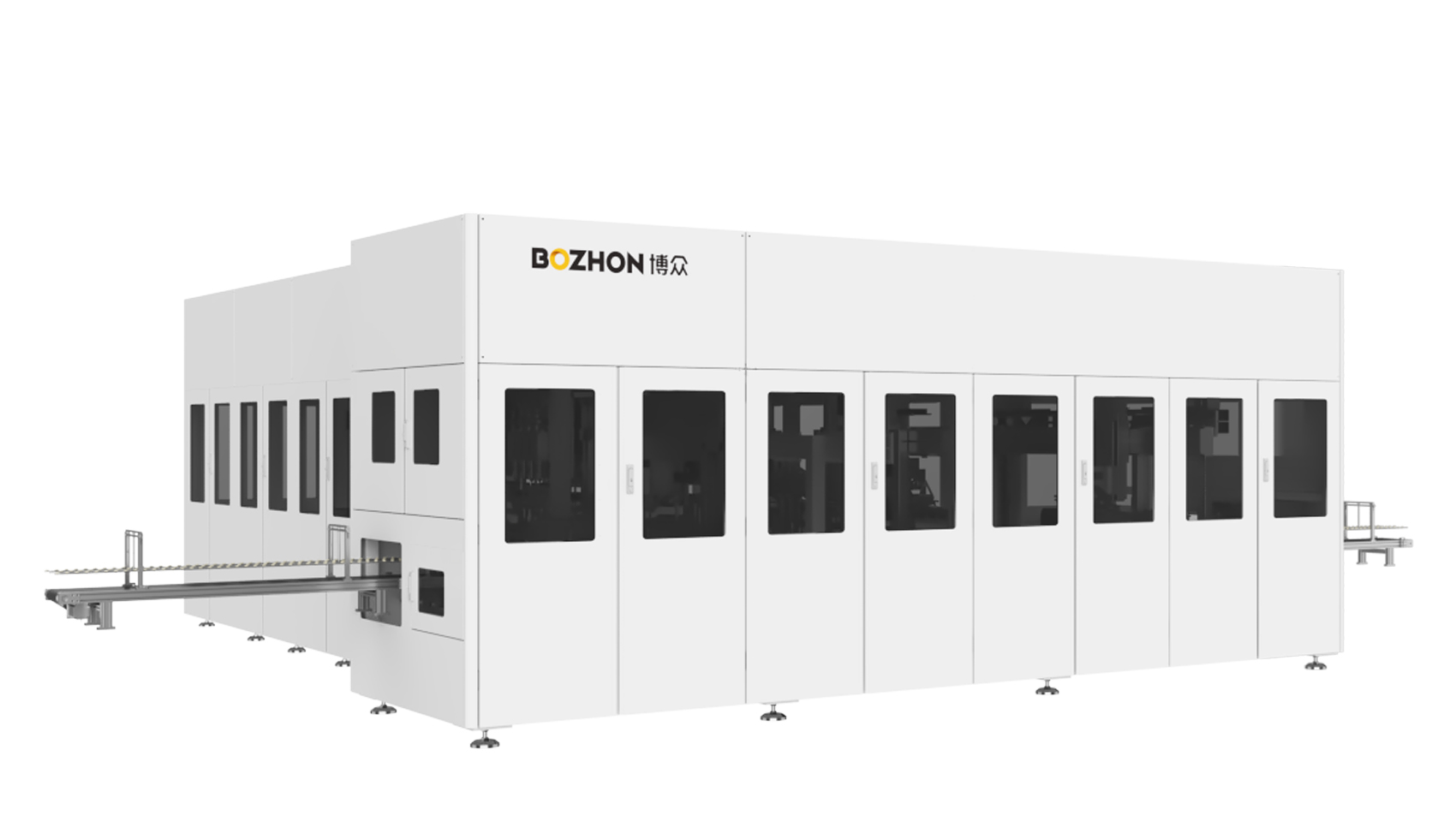

Prismatic Battery Electrolyte Filling Machine

Prismatic Battery Electrolyte Filling Machine It is applicable to fully automatic electrolyte injection for Square Battery batch production,and can achieve functions of cell feeding, shaping, code scanning, weighing, hi-pot testing, positive and negative pressure circulation electrolyte injection, weighing after electrolyte injection, electrolyte replenishment, nail sorting, pin pressing, injection nozzle cleaning, unloading.

Parameters

Equipment size

L11m * W7m * H2.8m
Weight

40,00kg
Air source

0.5-0.7MPa
Power supply

380VAC,50Hz
Power

80KW
Capacity

≥33PPM
Yield

> 99.9%
Failure rate

≤1.0%
Applicable product

Intra-series replacement clamp, cross-series replacement contact technical support
Product size

L120-350mm W70-140mm T20-90mm

Advantages

High Speed：Operating Efficiency: ≥33 ppm
Comprehensive Functions：It has functions of automatic shaping, code scanning, weighing, vacuum injection, standing, heat sealing, NG sorting, automatic unloading
Equipment Features：Vacuum injection and soaking are adopted to effectively develop better absorption of electrolyte
The electrolyte storage system adopts double tank design to effectively solve the problem of bubbles,Can automatically clean the pipeline and facilitate operation and maintenance.
Injection accuracy: ±0.5% of injection volume； 100g
