EV Battery Swapping Station

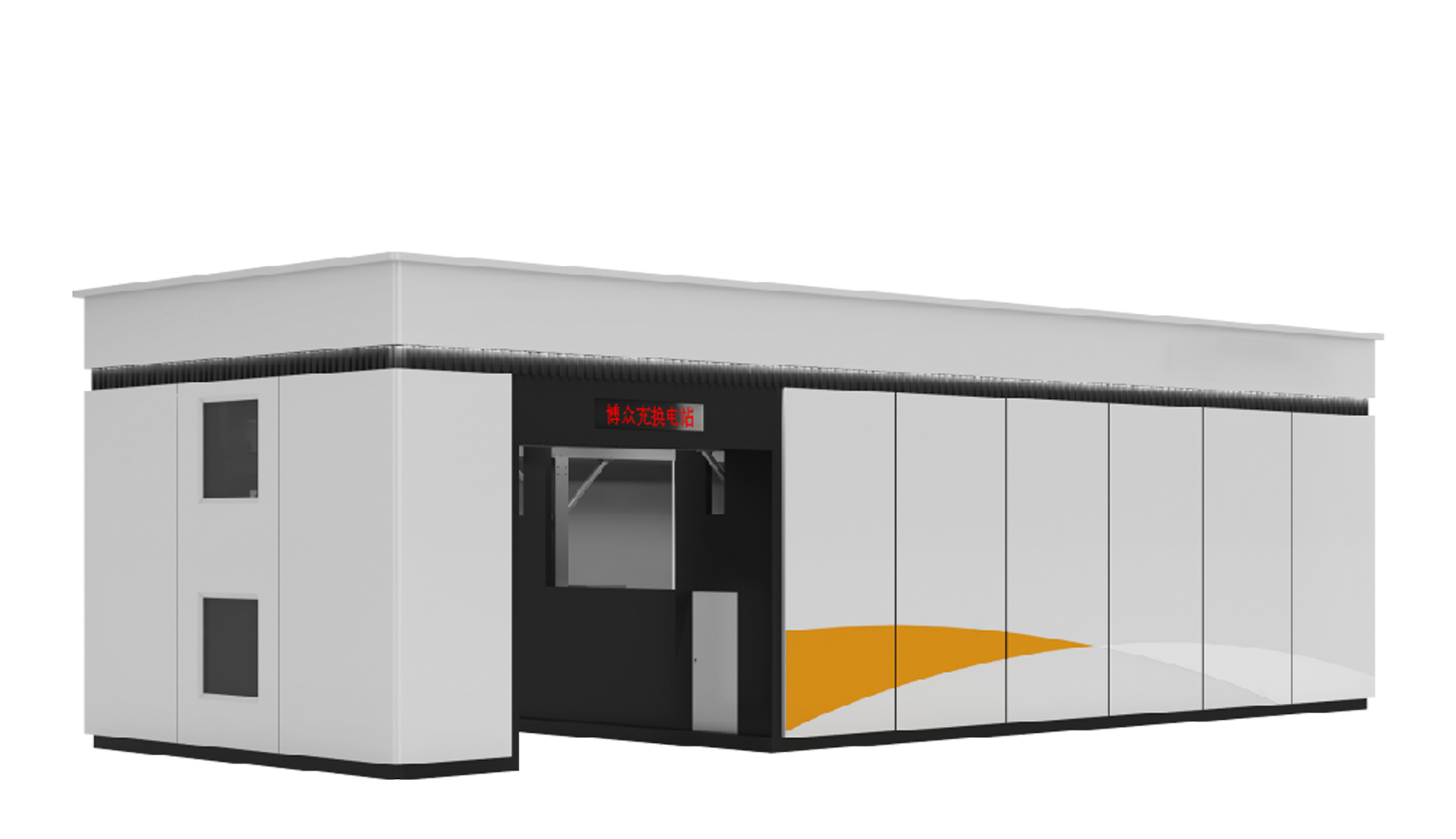

Heavy Truck Hoisting-type Battery Swapping Station (Steel Structure Type/Container Type)

Heavy-duty top-lifting battery swap station (Steel structure\Container type) The battery box position is recognized by cameras. The battery swapping machine intelligently adjusts the battery box position with the coordination of XYZR four-axis, achieving flexible battery swaps, reducing parking difficulties for drivers, and increasing the success rate of battery swaps.

Parameters
  • Steel structure equipment dimensions
    L22m * W5m * H7m
  • Container-style equipment dimensions
    L16m * W3.3m * H6.6m
  • Land area occupied by steel structure equipment
    110m²
  • Land area occupied by container equipment
    52.8m²
  • Battery swapping method
    Top-lifting
  • Charging slots
    8stations
  • Battery swapping time
    ≤5min (overall equipment cycle time)
  • Battery swapping success rate
    ≥99.9%
  • Service capacity
    140~150 times/day
  • Equipment functional modules
    battery swap, charging, fire protection, station control, etc.
  • Working environment
    -35℃~55℃
  • Altitude
    ≤3000 m
  • Equipment power
    AC380V
  • Noise level
    ≤ 75 dB (measured outside of the enclosure)
  • Charging power
    300KW
